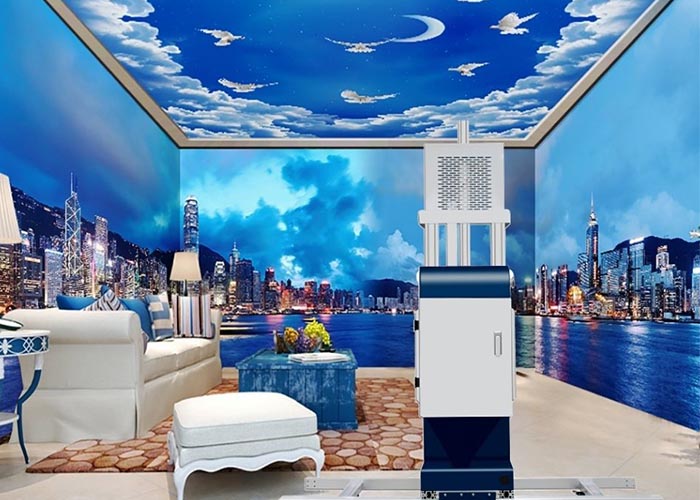

High speed silent track Micro piezoelectric ink-jet technology wall Mural Printing Machine with 3 years warranty
1. Can I test the printing effect of some pictures? Yes, you can provide me with the pictures you need to test, take a video for you to see while printing, or mail a printed sample. Or come directly to the site to inspect and print.
2. Where do I need to buy the subsequent consumable ink for the machine? We will continue to provide ink follow-up, the more you order, the cheaper the price.
3. How much does this machine cost for ink printing? The cost of inkjet ink per square area is about $0.5.
4. How should I operate this machine? Provide video manual tutorial, one-to-one remote guidance.
5. If I have some technical problems, how can you help me? Detailed descriptions, photos or videos will help our technicians analyze the problem and give corresponding solutions.
6. Is the machine stable, and what should I do if there is something to be replaced? Our printer is very stable. If any part is damaged, we will repair it or send you new parts. After the user sends the damaged parts, we will deliver a set of vulnerable spare parts separately when purchasing the machine.
The detailed parameter as follows.
| Modle Type | SSV-2 | |
| Ink base color | Double four colors , water-based INK | |
| Paint direction | Vertical | |
| Jet distance | 0.5-1CM | |
| Motherboard | 8-core high-speed CPU, 4GB RAM, Hi-Speed USB I/O port | |
| Nozzle type | EPSON, Japan Epson nozzle*2 |
| Motor | Three Intelligent motor +Reducer |
| Wall detection | Two Nano detector |
| Power down alarm | Real-time power failure alarm system |
| UPS power | Super uninterruptible power supply, Power outage 3hours |
| Ink supply system | Four-color ink cartridge integrated, 400 ml large-capacity ink cartridge negative pressure system for special color, with sealing plug and dust cover |
| Motor technology | Brushless motor, vector positioning system. No need for grating bars to be affected by light |
|
Print material | Suitable for users inside and outside putty wall, large white, imitation porcelain wall, latex paint wall, inkjet cloth, wall clothing, color glaze, color paint wall, etc.Tile, glass, acrylic, wood, pvc and metal materials ( Add layer) |
| Print resolution | 360*720dpi / 720*1080dpi / 720*1440dip / 1080*1440dpi / 1440*2880dpi |
| Support image format | PSD/CDR/JPG/JPGE/PNG/BMP/TIFF/AI/PDFAnd other image formats. Some formats need to be converted |
| Ink consumption/㎡ | 10-20ML, depends on the quality of the pictures you want to print |
| Print size | 2m height with any width, the machine is equipped with a laser positioning system, and large pictures over height 2 meters can be seamlessly stitched and printed. |
| Power supply | AC110V(90-132V) / AC220V(180-264V) AC,47-63HZ |
| Noise | Standby less than 15dba, work 50dba |
| printing speed | fast | Mode | Speed | | |
| medium | sketch mode | 24㎡/h | |
| slow | produce mode | 18㎡/h | |
| three speed | quality mode | 12㎡/h | |
| | Fine mode | 9㎡/h | |
| suppying system | negative pressure,400ml ink tank,colors in one unit |
| Technology | VSDT Variable ink drop technique feature technology |
| photo format | support PNG/JPG/TIFF/PDF/PSD/AI AND CDR.ETC |
| Precision | 720x720 DPI/720X1080DPI/720X1440DPI/720X2280DPI |
| Print size | No limite |
| Power supply | AC 110V /220V Frequancy:50hz/60hz |
| power consumption | no load 20w ,load 120w |
| Noise | standby <20DBA ,Working <50DBA |
| Storage | —30 -+60℃ |
| operation | ,-10-+50℃ |
| operation system | window ,xp/ win 7/win8 ,win 10 |
| language | English and chinese
|
after-sale warranty
1. The whole machine is guaranteed for three years. 2. Provide a full set of equipment manuals and videos.
3. Provide remote engineers 24 hours service to solve all usage problems online.
4. Provide foreign engineers on-site after-sales service.
5. Provide 4T copyright-free original images of various types of high-definition materials.
6. Continue to develop and upgrade, andfollow-up software upgrades continue to be pushed free of charge.
7. Continue to provide follow-up consumable manufacturersoriginal ink.
8.An extra set of wearing parts of the belt is given as a gift.
